ACT - VW8-HDSS - HD/Perf Street Sprung
ACT - VW8-HDSS - HD/Perf Street Sprung
SKU:VW8-HDSS
VW8-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
Feel:
Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle
Life:
Longer friction life, extended by ACT's exclusive diaphragm design
Quality:
Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
Recommendation:
Recommended for street and race use
Difference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

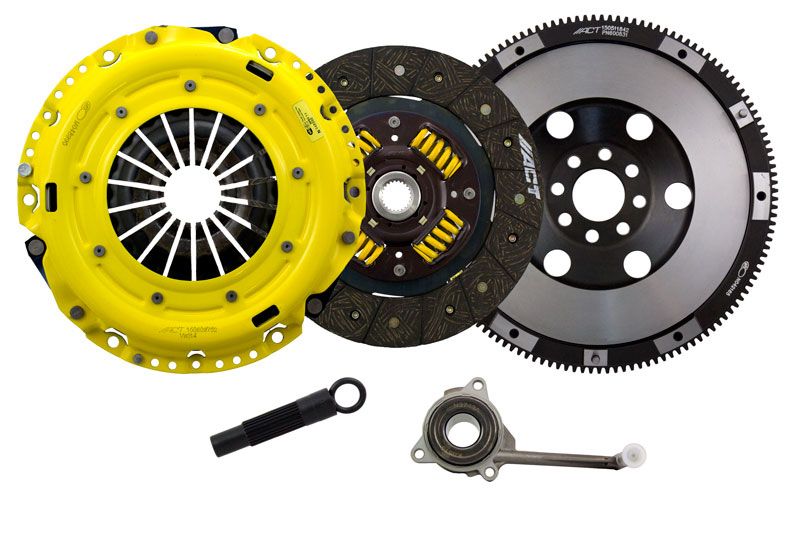

What's Included in this kit?
- 3000702 - Perf Street Sprung Disc
- 601301 - XACT Flywheel Streetlite
- AT126 - Alignment Tool
- RB3743A - Release Bearing
- VW016 - Heavy Duty Pressure Plate
HD/Perf Street Sprung for
- Audi A3 8P (2003-2013) 2.0 Turbo TSi (08-13)
- Volkswagen Eos 2009-2011 2.0L Turbo TSI L4 1984cc 121 CID
- Volkswagen Golf 5 2008-2014 Lcci998 121 CID CCTA
- Volkswagen Jetta V 2008-2010 2.0L L4 1984cc 121 CID CBFA
- Volkswagen Passat CC 2009-2010 2.0L Turbo TSI L4 1984cc 121 CID CCTA
Specifications:
| Manufacturer | ACT |
|---|---|
| Sku Manufacturer | VW8-HDSS |
| Clutch Disc diameter (mm) | 240 |
| Clutch Disc Type | Street disc (Organic) |
| Flywheel Tooth Count | 135 |
| Pressure Plate Type | Heavy Duty |
| Spline Count | 23 |
| Spline Size (Inches) | 15/16 |
| Torque Capacity (Nm) | 535 |
| Torque Capacity (ft/lbs.) | 395 |
| Torque Capacity Over OE | 30% |
